Installation


<< go back

Easy Installation   |   Applications   |   Balanced Flue   |   Installation Examples   |   Tank Installation Examples


Installation Examples


Typical DIY Installation

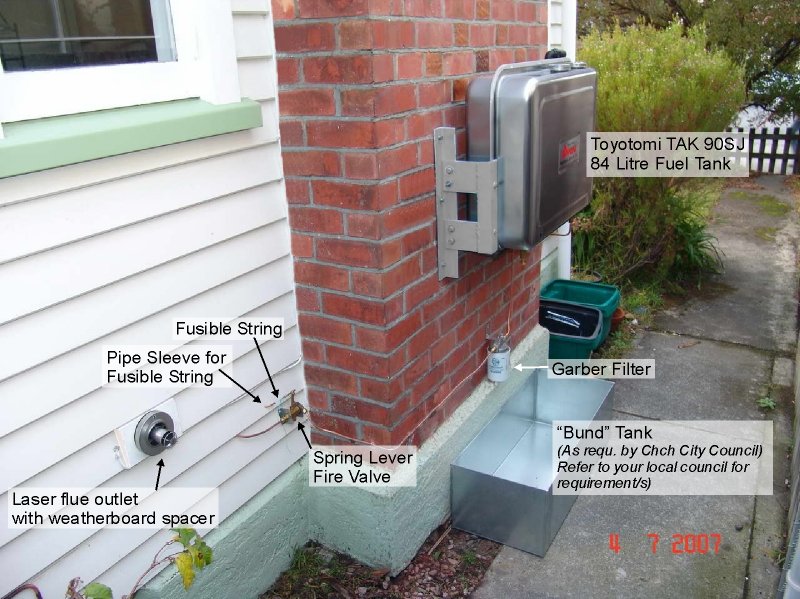

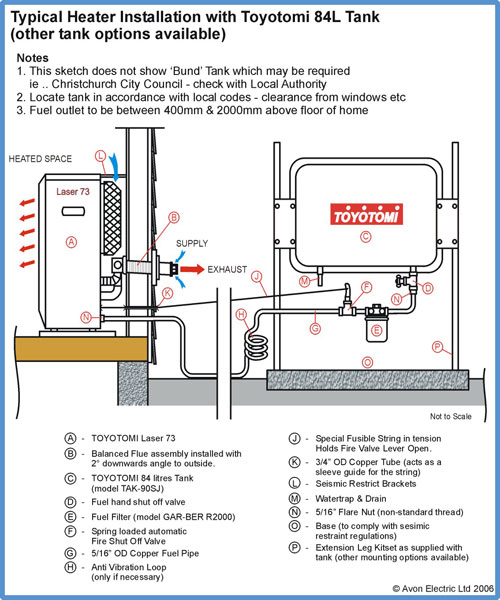

Photo & sketch shows typical DIY installation

 click to view larger image      click to view larger image

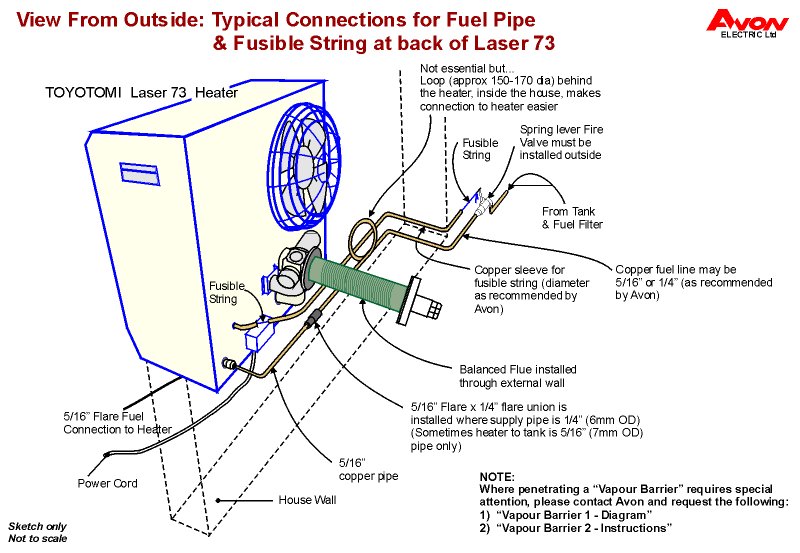

The Stainless Steel Balanced Flue for a typical "thru wall" installation (click sketches to enlarge) is included with each FF-95, avoiding the cost of additional flues, chimney wind deflectors, and saving considerable installation costs.


 click to view larger image

See Toyotomi Manual (download here) for detailed installation information.


Completed Installation Examples



 click to view larger image
 click to view larger image

The Laser FF-95 heats large areas: the whole house or just the living area - your choice.



Because the Laser FF-95 has three automatic heating stages (9.5kW, 5.49kW and 2.96kW) the heater actually “sizes itself” for the heating “load”. Thus the Laser FF-95 is equally suitable for heating a very large area (either a large living area, or an entire home) or, if installed in a smaller area, or home, the Laser will “switch down” to whatever output capacity suits the size of the area to be heated.

On a warm day after a cold morning, the Laser will automatically switch itself OFF, then as the room space cools down, (ie... the evening cools down), the Laser will automatically restart by itself, and maintain whatever temperature was pre-selected on the thermostat.

The overnight “setback” thermostat enables the Laser to be programmed to automatically “turn down” late at night, and to “turn up” early next morning so the home is warm when the household arises.

Manual control is also provided -- simply press the “Burner” button ON, and select the desired temperature -- as easy to use as a light switch !!



 click to view larger image  click to view larger image  click to view larger image

The Laser FF-95 heats small & medium areas too.
