LASERTM L56 5.6kW Diesel Heater



Laser 56   |   General Information   |   Dimensions   |    How LASERTM Heaters Work    |    Efficient, Economical & Safe   |   Warranty




 click to view larger image
click image to enlarge

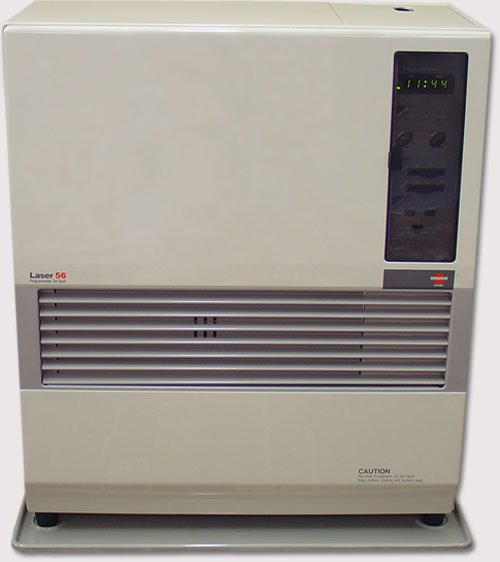

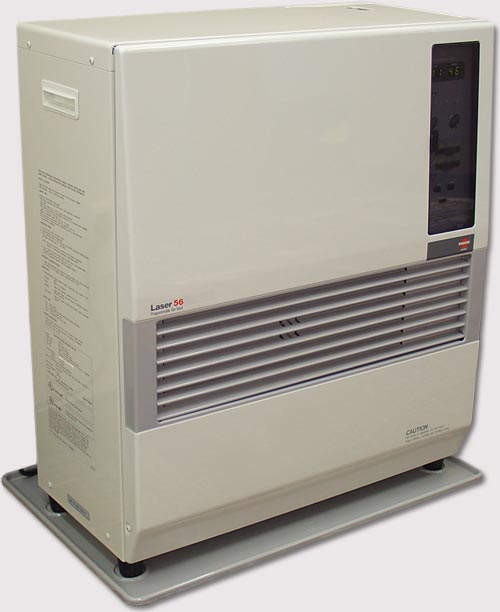

LASERTM L56 Heater - 5.6 kW Output (Made in Japan)
The LASERTM L56 includes 'through wall' flue and features user friendly controls, manual or fully automatic control of 3 stage burner and two thermostats for day & overnight (set back) temperatures (see How Laser Heaters Work). Computer controlled fan is ultra quiet at all speeds. Maximum high-fire fuel consumption rate 0.63 litres / hr of Standard Automotive Diesel. Installation requires no hearth or fire surround. Hot Air outlet grille directs huge volumes of comfortable hot air down to floor level. Cabinet is cool to touch at all times. Standard colour as pictured, but any colour is optional. For old and new homes, suitable for smaller homes or area heating.

(DIY installation is possible with free Avon technical assistance).


Note: Remote fuel tank required (see tank options on accessories page).

Output: (automatically selected) CO2 Emmisions
HIGH 5.6 kW (19,100 BTU/h) 2.789 Kg/hr
MED 3.7 kW (12,600 BTU/h) 1.963 Kg/hr
LOW 2.0 kW (6,800 BTU/h) 0.981 Kg/hr

Noise: 43dB (measured at 1 metre distance on "high")
Dimensions (mm): 620 (W) x 405 (D) x 680 (H)
Efficiency: 93%


Specifications:  Download full pdf
